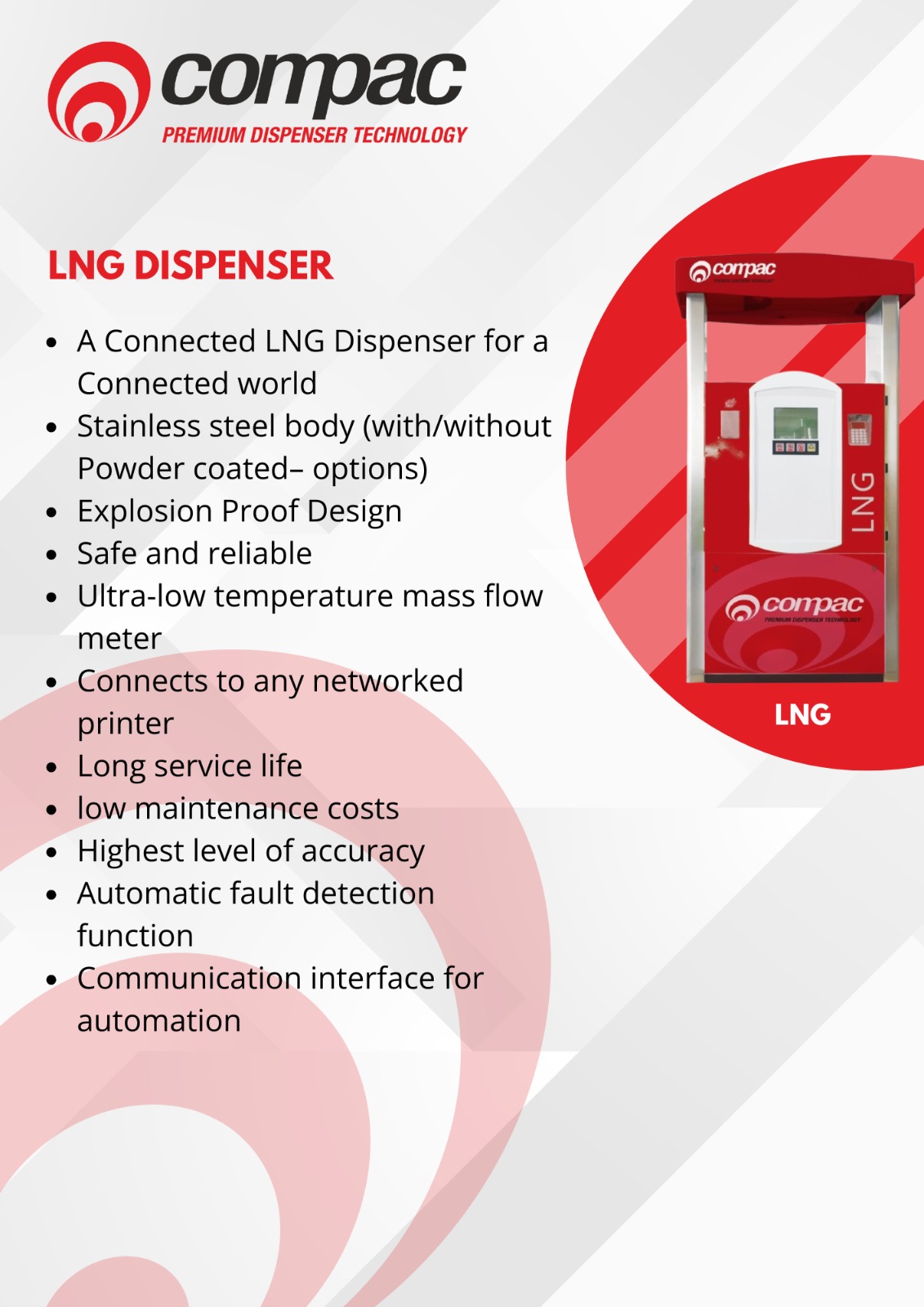

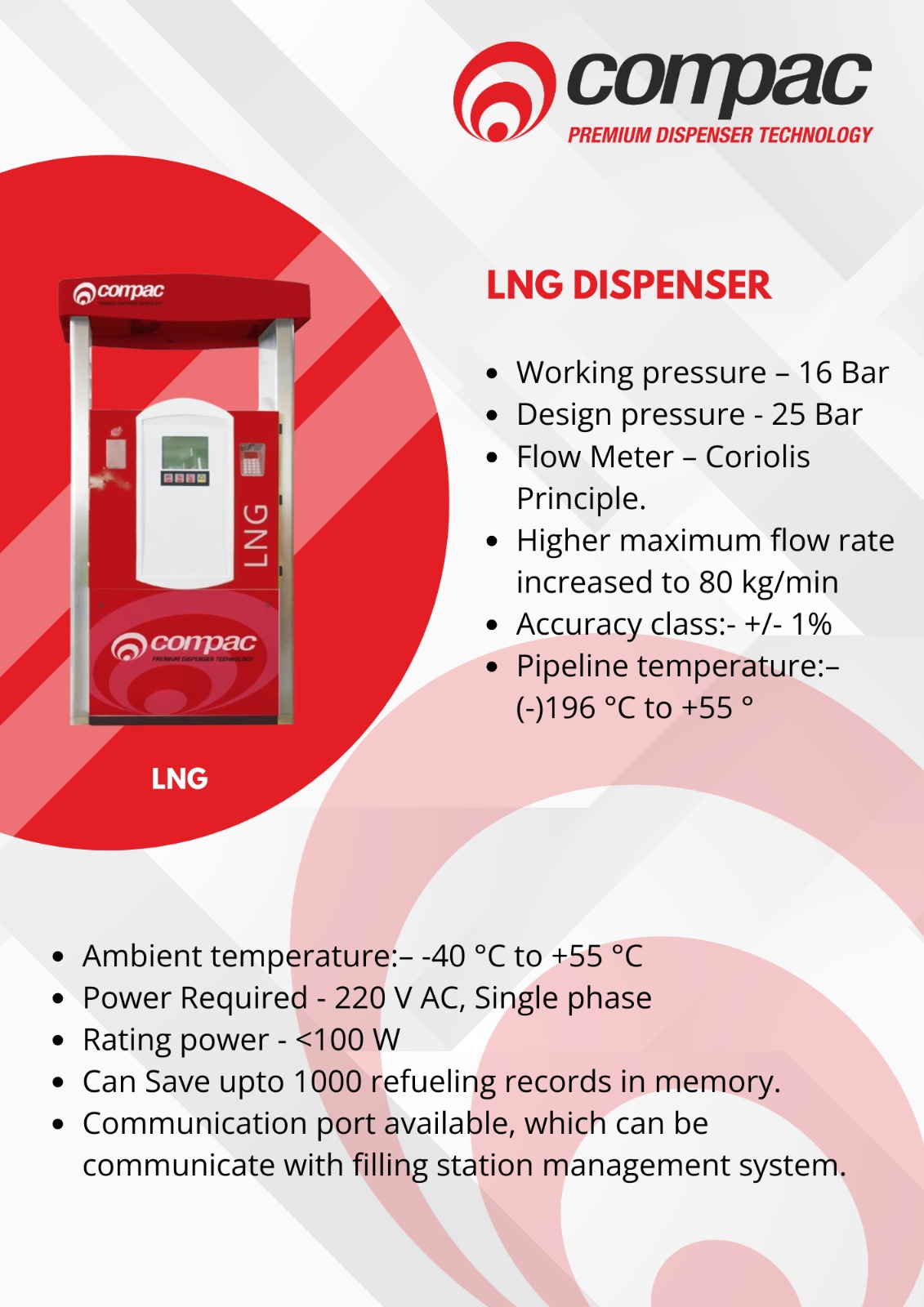

LNG DISPENSER

TECHNICAL SPECIFICATION
Liquefied natural gas (LNG) dispenser is kind of ultra-low temperature metering equipment that dispenses liquefied natural gas from LNG station to LNG vehicle. The equipment is composed of three parts: electronic control system, mass flow meter and LNG system.

  • Design Code BS EN ISO 16924:2018
  • Fluid Liquid natural gas( LNG)
  • Maximum allowable working pressure 24 bar(g)
  • Working temperature -196 °C to 55 °C
  • Accuracy ±1.5%
  • Flow rate (Nominal) 150 LPM (40gpm)
  • Filling option by Kg, Money
  • EX-Code ATEX Approval
  • Power supply 230V± 15% 50HZ ± 1HZ
  • LIENT FEATURES
  • Fully SS body (to sustain negative temperature upto -196 °C.
  • Stainless steel Piping is designed and fabricated as per ASME B31.3 standards
  • Intrinsically safe, ex-proof control panel & LCD display.
  • Equipped with advanced safety features and Stop code functions.
  • Equipped with highly efficient components for quick, safe, reliable and leakage free operation.
  • Equipped with separate Nozzle for filling and vent.
  • Communication interface for data extraction through Modbus.
  • Equipped with W&M approved Coriolis flow meter.
  • OIML R117 certification of flow meter.
  • ATEX certificate of electrical components.
